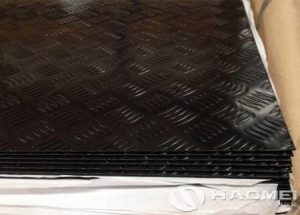

Black Aluminium Checker Plate
Black aluminium checker plate is used as scuff (kick) plates, running boards, mud flaps and more. It cuts cleanly, leaving a smooth edge. Black aluminum checker plate also help maintain its good looks and make it easy to keep clean. It is highly suitable for many practical and decorative applications including floors, walls, trailers, garages, gyms, and more.
Haomei supply black aluminum tread plate is a black powder coated sheet with a regular diamond pattern on one side. Our black aluminium plates commonly used for caravans, trailers or to make tool boxes, kick plates, trailer flooring, wheel guards, feature paneling, boot liners, shelves and much more.
Specification of black aluminium checker plate:
| Item | aluminum checkered sheet |
| Grade | 1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc. |
| Temper | O, H12, H14, H16, H18, H24, H24, H26, H32, H34 |
| Standard | ASTM-B209. EN573-1, GB/T3880.1-2006 |
| Thickness | 0.8 – 12mm |
| Width | 400-1220mm |
| Length | max 6000mm for sheet or as required for coil |
| Pattern | big 5 bar / small 5 bar / 3 bar / diamond / pointer |
| Surface treatment | polished, mill finished, power coated, sand blast, anodized, brushed. |
| Surface Protection | Oleo phobic coating,protective film,paint coating. |
| Packing | Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP. |
| Quality | Totally free from defects like white rust, oil patches,roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| MOQ | 1-2 Metric ton |
| Free sample | Available |
| Delivery time | 20-30 days after deposit |
Features of black aluminum checker plate:
It is a kind of black aluminium checker plate which can be forged with cold treatment and can be used in situations which have high demand in anti-corrosion and oxidation.
As a result of its good availability and its connector with super features, it is easily coated and has good processability.
It is used for tool boxes, ramps or anything that requires an ultra-hard wearing property
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | |
| Single | Total | |||||||||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | _ | 0.05 | 0.03 | 0.03 | _ | 99.6 |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | _ | 0.05 | 0.03 | 0.03 | _ | 99.5 |
| 1100 | Si+Fe:0.95 | 0.05-0.4 | 0.05 | _ | _ | _ | 0.1 | _ | 0.05 | 0.15 | 99 | |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 | _ | _ | 0.1 | 0.05 | 0.05 | 0.15 | 99 | ||
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | _ | _ | _ | 0.1 | _ | 0.05 | 0.15 | R |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | _ | _ | 0.25 | _ | 0.05 | 0.15 | R |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.1 | _ | 0.25 | 0.1 | 0.05 | 0.15 | R |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.2 | _ | 0.4 | 0.1 | 0.05 | 0.15 | R |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | _ | 0.25 | _ | 0.05 | 0.15 | R |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | _ | 0.1 | _ | 0.05 | 0.15 | R |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | _ | 0.25 | 0.15 | 0.05 | 0.15 | R |
| 5086 | 0.4 | 0.5 | 0.1 | 0.2-0.7 | 3.5-4.5 | 0.05-0.25 | _ | 0.25 | 0.15 | 0.05 | 0.15 | R |
– Standard seaworthy export packing,wooden pallets with plastics protection for the aluminum sheet/plate.
– 15-20 MT can be loaded into 20′ container and 40′ container.
– The other packing can be made base on the customer requirement.
– We have successfully worked with several shipping compaines that give us best price.
– Delivery Time: 1~7days workdays( in Stock);10~25days workdays( our of Stock).
-By express:DHL/UPS/FEDEX/EMS and our own express line.
-By air or By sea
